For more than 70 years, Graphtec has pioneered cutting solutions and they have found a new home at Far From Normal! Their cutters are renowned for their unparalleled durability. Graphtec is dedicated to continually enhancing its competitive edge, product features, performance, and commitment to excellence.

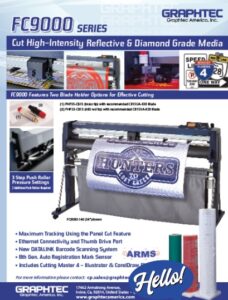

FC9000 Series
![](https://www.far-from-normal.com/wp-content/uploads/2024/06/Screenshot-2024-06-21-112147-1024x141.jpg)
The Graphtec FC9000 Series represents the pinnacle in roll-fed cutting plotter technology.
known for its reliable, high-precision cutting performance, the FC Series stands as the ultimate choice for finishing tasks across diverse industries such as wide-format signage, apparel, and automotive applications.
Highlighted by an innovative feeding system and cutting head, the FC9000 Series delivers enhanced cutting quality across a spectrum of materials, from delicate window tint to robust high-intensity reflective substrates.
Print & Cut Accuracy
Graphtec’s Advanced Registration Mark Sensing (ARMS) technology delivers precise Print & Cut results in addition to efficiency-boosting features.
Easily Accommodate Reflective Media
![](https://www.far-from-normal.com/wp-content/uploads/2024/06/Screenshot-2024-06-21-112553-1024x227.jpg)
The new white LED sensor and improved search algorithm accurately read registration marks printed from any printer onto a variety of media types including high gloss, metallic, glitter, and high-intensity reflective.
Contour & Die Cut With Ease
![](https://www.far-from-normal.com/wp-content/uploads/2024/06/Screenshot-2024-06-21-114336.jpg)
Separate tool positions for contour and die cutting ensure the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.
Take-Up Reel
The Optional Take-up Reel boosts production efficiency by automatically winding rolls of media up to 65 feet long with an equipped infrared sensor.
Compatible with the FC9000-140 and FC9000-160.
Standard Accessories
Item | Qty | Description |
---|---|---|
Cutting Blade | 1 | CB09UB |
Blade Holder | 1 | PHP33-CB09N-HS |
Blade Loupe | 1 | PM-CT-001 |
Fiber-tip Pen | 1 | KF700-BK (black) |
Fiber-tip Pen Holder | 1 | PHP31-FIBER |
Stand | 1 | Parts kit |
Media Flange Set | 1 | OPH-A21 |
Media Basket | 1 | Parts kit |
Software Download | 1 | Graphtec Studio 2 & Cutting Master 5 for Mac and PC |
Manuals | 2 | Setup Manual, Cutting Blade Manual, and Safety Manual |
USB Cable | 1 | 9.5 feet long |
Power Cord | 1 | The type of cord is different by destination |
Optional Accessories
Item | Part No. | Description |
---|---|---|
Additional Pen Holder | ECK0013 | For dual tool configuration (dealer option) |
Media Flange | OPH-A21 | Flange for media holding |
Additional Push Roller | OPH-A47 | One additional push roller |
FC9000-140 Take-up System | OPH-A43 | Automatic Take-up System for the FC9000-140 |
FC9000-160 Take-up System | OPH-A44 | Automatic Take-up System for the FC9000-160 |
![](https://www.far-from-normal.com/wp-content/uploads/2024/06/Screenshot-2024-06-21-142346-1024x149.jpg)
Model | FC9000-75 | FC9000-100 | FC9000-140 | FC9000-160 |
---|---|---|---|---|
Max. cutting area (W x L) (*1) | 30 in x 164 ft 762 mm x 50 m | 42 in x 164 ft 1067 mm x 50 m | 54 in x 164 ft 1372 mm x 50 m | 64 in x 164 ft 1626 mm x 50 m |
Guaranteed Precision Cutting Area (*1) | 29.21 in x 50 ft | 41 in x 32 ft 35.2 in x 50 ft | 53 in x 32 ft 35.2 in x 50 ft | 63 in x 32 ft 35.2 in x 50 ft |
Mountable media width(*2) | Min. 1.96 in Max. 36.22 in | Min. 1.96 in Max. 48.19 in | Min. 1.96 in Max. 60.20 in | Min. 1.96 in Max. 72.83 in |
Max. cross cut width | 30 in | 42 in | 54 in | 64 in |
Number of push rollers | 2 rollers | 3 rollers | 4 rollers | 4 rollers |
CPU | 32-bit CPU | |||
Configuration | Grit rolling plotter | |||
Drive method | Digital servo drive | |||
Max. cutting speed | Max. cross-cut width | |||
Cutting force | Max. 600 gf in 48 steps | |||
Axial acceleration | Max. 39.2 m/s2 (4 G) in 8 steps | |||
Compatible roll media diameter | Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed) | |||
Mechanical resolution | 0.005 mm | |||
Programmable resolution | GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm | |||
Distance accuracy (*2) | 1 tool (cutting blade, plotting pen or pouncing tool) in standard; 2 tools (cutting blade and plotting pen) when the second penholder (optional) is installed | |||
Repeatability (*2) | Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media) | |||
Minimum character size | Approx. 5 mm alphanumeric (varies depending on character font and media) | |||
Mountable number of tools | Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick, Automotive protection and window tinting film, Sandblast resist rubber up to 1 mm thick | |||
Blade types | Supersteel (0.9 mm or 1.5 mm diameter) | |||
Pen types | Water-based fiber-tip pen, Oil-based ballpoint pen | |||
Pouncing tool type | Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12) | |||
Media types (*3) | Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,Automotive protection and window tinting film, Sandblast resist rubber up to 1 mm thick | |||
Compatible paper for pouncing | Regular paper from 0.06 to 0.13 mm thick | |||
Cross-cutter | Built into the tool carriage | |||
Perforation cutting | Supported (performed by force control) | |||
Interface | USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX | |||
Buffer memory | 2 MB | |||
Command sets | GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select) | |||
Condition settings | Dual configuration (save two (2) user settings with eight (8) separate condition settings per user) | |||
Display | Graphic type LCD (3.7-inch, backlight) | |||
Power source | 100 V to 240 V AC, 50 / 60 Hz | |||
Power consumption | AC100-240 V, 50/60 Hz | |||
Operating environment | 50 to 95 ºF, 35 to 75 % R.H. (non-condensing) | |||
Guaranteed accuracy environment | 60 to 89 ºF, 35 to 70 % R.H. (non-condensing) | |||
External dimensions (W x D x H) | 50″ x 28″ x 48″ 1270 x 711 x 1219 mm | 61.8″ x 28″ x 48″ 1570 x 715 x 1219 mm | 73.6″ x 28″ x 48″ 1870 x 711 x 1219 mm | 84″ x 28″ x 48″ 2133 x 711 x 1219 mm |
Weight (*8) | 108 lbs. | 123 lbs. | 141 lbs. 178 lbs. /w take-up | 154 lbs. 195 lbs. /w take-up |
Included Software(*6)) | Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac | |||
Compatible OS (*5) | Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 13 (Ventura) | |||
Warranty | 3 YEAR WARRANTY | |||
Safety | PSE, UL/cUL, CE mark) | |||
EMC | VCCI Class A, FCC Class A, CE mark |
*1: Operated with Graphtec specified cutting conditions and media.
*2: There are conditions for operation when setting the media.
*3: HP-GL is a registered trademark of Hewlett-Packard Company.
*4: CB15UA/CB15UA-K30 blades and reinforced backing sheets are recommended for certain grades of high-intensity reflective film.
*5: Graphtec does not support software/drivers used with operating systems that have become obsolete and are no longer supported by the OS developer.
*6: Software is available for download from Graphtec’s website.
*8: Includes stand and basket.

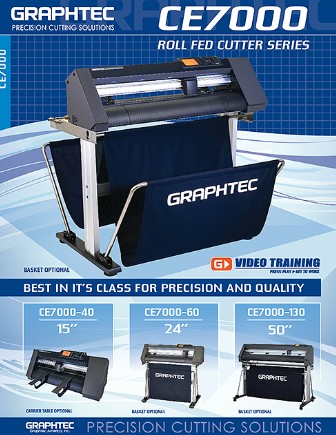

CE7000 Series
![](https://www.far-from-normal.com/wp-content/uploads/2024/06/Screenshot-2024-06-21-120802-1024x138.jpg)
The Graphtec CE7000 Series offers an ideal solution for boosting production efficiency in signage graphics, print & cut graphics, POP & packaging, automotive markets, and more…
Print & Cut Accuracy
A new and improved Advanced Registration Mark Sensing System, or ARMS, for print and cut applications. The DataLink Barcode system is the new addition to ARMS. Barcodes may now be generated and printed as part of the design which creates a hand’s free operation. The reading of Registration marks is faster increasing productivity.
Contour & Die Cut
![](https://www.far-from-normal.com/wp-content/uploads/2024/06/Screenshot-2024-06-21-120849.jpg)
Separate tool positions for contour and die cutting ensure the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.
Network Connections
![](https://www.far-from-normal.com/wp-content/uploads/2024/06/Screenshot-2024-06-21-120907.jpg)
A network connection is now possible through a network interface enabling the use of TCP/IP protocols to transfer cut data.
A new secondary USB port has been added for placing thumb drives so jobs can be uploaded and cut without the need of a computer. Select barcode function or select file directly from the thumb drive.
Standard Accessories
Item | Qty | Description | |
---|---|---|---|
Power cord | 1 | The type of cord is different by destination | |
USB Cable | 1 | 9.5 feet long | |
Cutting blade holder | 1 | PHP33-CB09N-HS | |
Cutting Blade | 1 | CB09UB | |
Loupe | 1 | PM-CT-001 | |
Fiber-tip pen holder | 1 | PHP31-FIBER | |
Water-based fiber-tip pen | 1 | KF700-BK (black) | |
Stand | 1 | Parts kit | |
Roll Media Tray | 1 | Only for CE7000-40 | |
Stand for CE7000 | 1 | Standard accessory for 60/130 | |
Printed Documents | 1 | Setup Manual, Cutting Blade Manual, and Safety Manual |
Optional Accessories
Item | Part No. | Description |
---|---|---|
Media Baskets | ||
PG0103 | CE7000-60 | |
PG0104 | CE7000-130 | |
Carrer Sheet Table | OPH-A45 | CE7000-40/60 |
![](https://www.far-from-normal.com/wp-content/uploads/2024/06/Screenshot-2024-06-21-132226-1024x208.jpg)
Model | CE7000-40 | CE7000-60 | CE7000-130 | |
---|---|---|---|---|
Configuration | Grit roller with digital servo drive system | |||
Maximum cutting area (W x L) | 15″ x 164′ | 24″ x 164′ | 50″ x 164′ | |
Cutting area of guaranteed accuracy | 14″ x 79″ | 23″ x 79″ | 50″ x 79″ | |
Mountable media width | 2″ 19″ | 2″ 30″ | 2″ 54″ | |
Number of push rollers | 2 rollers | 4 rollers | ||
Maximum cutting speed | 24″/s, in all directions | 36″/s, at 45º direction | 39″/s, at 45º direction | |
Maximum acceleration | Max. 21.2 m/s2 (2.2G) at 45º direction | 45.60′ (13.9 m/s2), at 45º direction | ||
Maximum cutting force | 4.41 N (450 gf) in 38 steps | |||
Minimum character size | Approx. 5 mm (0.016″) alphanumeric (depending on character font and type of media) | |||
Programmable resolution | GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm | |||
Repeat-ability | Max. 0.1 mm in plot up to 2 m (*1) | |||
Mountable number of tools | 1 tool | |||
Blade type | Supersteel | |||
Pen type | Oil-based ballpoint, Water-based fiber-tip pen | |||
Media type | Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm) Stencil material | |||
Interface | USB 2.0 (Full Speed), Ethernet 10BASE-T/100BASE-TX | |||
Buffer memory | 2 MB | |||
Command sets | GP-GL / HP-GL™ (Set by command or auto-detect) | |||
Display | Graphic type LCD with back-light (240dots x 128dots), supports 10 languages | |||
Registration Mark Sensing System | Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detection | |||
Alignment accuracy | Maximum 0.3 mm with printed image (when reading specified registration marks) | |||
Power source | 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz | |||
Power consumption | 120 VA | |||
Operating environment | 10 to 35 ºC, 35 to 75 % R.H. (non-condensing) | |||
Guaranteed accuracy environment | 16 to 32 ºC, 35 to 70 % R.H. (non-condensing) | |||
External dimensions (W x D x H) (with Basket) | Approx. 30.4″ x 11.5″ x 12.3″ | Approx. 39.6″ x 23″ x 43″ (39.6″ x 36.9″ x 43″) | Approx. 67″ x 32″ x 48″ (67″ x 45.2″ x 48″) | |
Weight (Approx.) (with Basket) | 27.7 lbs (13kg) | 51 lbs (23 kg) 55.6 lbs (25.2 kg) | 112.4 lbs (51 kg) 121 lbs (54.9 kg) | |
Compatible OS (*2) | Windows 11 /10 / 8.1 / 64-bit editions Mac OS 10.2 (Sierra) to 13 (Ventura) | |||
Included software (download) | Graphtec Studio 2, Cutting Master 5 for Windows, and Mac | |||
Compatibility Standards | Safety | PSE, UL/cUL, CE mark | ||
EMC | VCCI Class A, FCC Class A, CE mark |
*1: Operated with Graphtec specified cutting conditions and media.
*2: There are conditions for operation when setting the media.
*3: HP-GL is a registered trademark of Hewlett-Packard Company.
*4: CB15UA/CB15UA-K30 blades and reinforced backing sheets are recommended for certain grades of high- intensity reflective film.
*5: Graphtec does not support software/drivers used with operating systems that have become obsolete and are no longer supported by the OS developer.
*6: Software is available for download from Graphtec’s website.
*8: Includes stand and basket.
FCX2000 Series
Graphtec’s FCX2000 Series of medium to large flatbed cutting plotters offers an ideal solution for package prototyping and short production runs with rigid materials, eliminating the requirement for a cutting die. Featuring dedicated software for contour cutting, it minimizes media waste and processing time. The FCX2000 Series is the ultimate choice for seamless and efficient package prototyping and short production runs.
![](https://www.far-from-normal.com/wp-content/uploads/2024/06/Screenshot-2024-06-21-133547-1024x311.jpg)
Provided Tools Suitable For Multiple Applications
The FCX2000 has 2 Tool Holders in the Carriage.
Using 2 different tools allows you to do 2 different jobs without exchanging tools, which increases work efficiency.
Use Cutting & Creasing Tools Together
Dual Tool Holders which can hold a cutting blade and creasing tool to produce creases/folds and cuts on the same run.
![](https://www.far-from-normal.com/wp-content/uploads/2024/06/Screenshot-2024-06-21-133614.jpg)
![](https://www.far-from-normal.com/wp-content/uploads/2024/06/Screenshot-2024-06-21-133625.jpg)
Stronger Media Hold-Down
![](https://www.far-from-normal.com/wp-content/uploads/2024/06/Screenshot-2024-06-21-133734.jpg)
Distance between the holes has been improved from 30 mm on FC2250 Series to 20 mm on FCX2000 Series, as a result, FCX2000 Series provides stronger suction power to hold heavier and thicker medias down.
Intuitive Operation with 3.7″ LCD
Onboard control and settings are simplified using the equipped 3.7” LCD (240×128 dots) and tactile control panel.
![](https://www.far-from-normal.com/wp-content/uploads/2024/06/Screenshot-2024-06-21-133749.jpg)
![](https://www.far-from-normal.com/wp-content/uploads/2024/06/Screenshot-2024-06-21-134532-1024x180.jpg)
Table Enhancements
Improved Y-bar Rigidity: For precision cutting accuracy
Safety enhancement: A new, dedicated emergency STOP switch is at the ready.
Supports a dedicated stop switch for stopping the machine when emergency case is occurred.
Roll-media stocker: The FCX2000 comes equipped with a mounted roll-media stocker.
Supports media width up to 37.4” and weight up to 11 lbs.
Standard Accessories
ITEM | Qty | Description |
---|---|---|
Blades – CB15U-2 | 1 ea | Case Contains 2ea CB15U Blades (45º) |
Blades – CB15U-K30-5 | 1 ea | Case Contains 5ea CB15U-K30 Blades (60º) |
Blade Holder | 1 ea | PHP33-CB15N-HS |
Blade Loupe | 1 ea | PM-CT-001 (Magnifier for checking the extruded length of blade) |
Fiber-tip Pen | 1 ea | KF700-BK (Black) Water-based |
Fiber Pen Adaptor | 1 ea | PHP31-FIBER – Plunger / Height Adjustment Tool |
Height Adjustment Plate | 1 ea | Includes Hexagon Driver Tool |
Media Stocker | 1 ea | Stock roller with 2 mounting brackets |
Stand | 1 ea | Heavy Duty Aluminum Stand |
DVD-ROM | 1 ea | ・User’s Manual (PDF) ・Windows Driver (OPS662) ・Cutting Master 4 (plug-in for Illustrator / CorelDRAW – Windows / Illustrator – Mac) ・Graphtec Pro Studio (design software for Windows) ・Graphtec STUDIO (design software for Mac) |
Documents | 1 set | Quick Guide / Cutter Blade Manual / Usage Precautions |
USB Cable | 1 ea | Length 114″ (2.9 m) |
Power Cord | 1 ea |
![](https://www.far-from-normal.com/wp-content/uploads/2024/06/Screenshot-2024-06-21-134915-1024x301.jpg)
MODEL | FCX2000-60VC | FCX2000-120VC | FCX2000-180VC | ||
---|---|---|---|---|---|
Configuration | Digital servo system, Flatbed | ||||
Media hold-down method | Vacuum suction | ||||
Effective cutting area | 24 in x 36 in (610mm x 920mm) | 47.2 in x 36 in (1,200mm x 920mm) | 70.8 in x 36 in (1,800mm x 920mm | ||
Mountable media (Y-axis) | 3 ft 1.4 in (950mm) | ||||
Roll media support | Roll media stocker (manual), supported media width up to 950 mm, weight up to 5 kg | ||||
Maximum cutting speed | 1 ft 3.7 inch/sec (400 mm/sec) (1 to 40 cm/s in 16 steps), in all directions | ||||
Cutting force | Tool 1: Max. 4.9 N (500 gf), Tool 2: Max. 9.8 N (1 kgf) | ||||
Cutting force settings | Tool 1: in 40 steps, Tool 2: in 40 steps | ||||
Minimum character size | Approx. 10 mm square (varies with character font and media) | ||||
Programmable resolution | GP-GL mode: 0.1/0.05/0.025/0.01 mm, HP-GL™ : 0.025 mm | ||||
Distance accuracy | Max. 0.1% of the distance moved or 0.1 mm, whichever is larger (in plotting mode) (*2) | ||||
Perpendicularity | Max 0.5 mm / 900 mm (in plotting mode) | ||||
Repeatability | Max 0.1 mm (excluding contraction of media, in plotting/cutting mode) (*2) | ||||
Standard interfaces | RS-232C, USB2.0 (High-Speed), and Ethernet (10BASE-T/100BASE-TX) | ||||
Buffer memory | 2MB | ||||
Command sets | GP-GL and HP-GL™ emulation (set by menu, or selects automatically by received data) | ||||
Number of tools | Two tools | ||||
Cutting blade, pen, and tool types | Cutting blade (supersteel), Pens (Water-based fiber-tip pen, oil-based ballpoint pen), and Creasing/scoring tool | ||||
Others | ARMS, Reverse side Cutting/Creasing using ARMS, ARMS Copy function, Creasing, Cutting/creasing in multiple passes | ||||
Power source | 100 to 240 VAC, 50/60 Hz (Auto switching) | ||||
Power consumption | Max. 140 VA | ||||
Pumps | 110V has 1.5 horse power, 220V has 2.5 horse power | ||||
Operating environment | Temperature: +10 to +35 ºC, Humidity: 35 to 75% RH (non-condensing) | ||||
Guaranteed accuracy environment | Temperature: +16 to +32 ºC, Humidity: 35% to 70% RH (non-condensing) | ||||
External dimensions [W x D x H] (Approx.) | W 52.9 x D 55.4 x H 36.6 in1344 x 1409 x 930 mm (Including stand) | W 76.1 x D 55.4 x H 36.6 in1934 x 1409 x 930 mm (Including stand) | W 99.7 x D 55.4 x H 36.6 in2534 x 1409 x 930 mm (Including stand) | ||
Weight (Approx.) | 167.5 lb (Including stand) (*3) | 218.2 lb (Including stand) (*3) | 225.7 lb (Including stand) (*3) | ||
Compatible OS (*4) | Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 10.13 (Ventura) | ||||
Included Software (*5) | Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac | ||||
Compatible Standards | Safety | UL60950-1/cUL, CE marking (Low voltage and EMC) | |||
EMC | FCC-A, EN55032-A |
*1. Available in a limited region. Please contact your local representative of Graphtec.
*2. When operated with Graphtec specified media and conditions.
*3. Vacuum Pump for media hold-down system is not included.
*4. For more information about Windows and Macintosh compatibility, please check the website or contact your local representative of Graphtec.
*5. Software is available for downloading from Graphtec website.
Media Type
Media Type | Thickness | Supported Blades | FCX2000-60VC | FCX2000-120VC | FCX2000-180VC | FCX2000-120ES |
---|---|---|---|---|---|---|
Self-adhesive marking film (vinyl, fluorescent, reflective) | up to 0.25 mm | CB09UB | 〇 | 〇 | 〇 | 〇 |
Heavy paper/board (pattern paper, oil board) | up to 0.5 mm | CB15U, CB15U-K30 | 〇 | 〇 | 〇 | 〇 |
up to 1.0 mm | CB30UC | 〇 | 〇 | 〇 | 〇 | |
Compressed foam sheet | up to 0.8 mm | CB15U-K30 | 〇 | 〇 | 〇 | – |
Sandblast resist rubber | up to 1.0 mm | CB15U-K20 | 〇 | 〇 | 〇 | 〇 |
Cardboard (F/G flute) | up to 1.1 mm | CB30UC | 〇 | 〇 | 〇 | 〇 |
CB15U-K30 | 〇 | 〇 | 〇 | 〇 | ||
Clear sheet for plastic boxes | up to 0.5 mm | CB15U | 〇 | 〇 | 〇 | 〇 |
up to 1.0 mm | CB15U-K30 | 〇 | 〇 | 〇 | – | |
High-intensity reflective film | up to 0.5 mm | CB15UA | 〇 | 〇 | 〇 | – |
up to 1.0 mm | CB15UA-K30 | 〇 | 〇 | 〇 | – |
FCX4000 Series
The Graphtec FCX4000 Series enhances cutting quality and accuracy through improved rigidity in its sliding mechanism and driving system. It stands out as a top-tier flatbed cutting plotter, offering exceptional usability and productivity with new features.
The FCX4000 is an economical solution for small to medium print-on-demand jobs, utilizing electrostatic media holding. The 60ES model efficiently accommodates up to four A3+ sheets, ensuring high productivity. It boasts an intuitive operation with a new control panel, a 3.7” LCD screen, and USB/Barcode functionality. It achieves a maximum speed of 29.5 inches per second and exerts a maximum force of 600 gf.
Stronger Media Hold-Down
The FCX4000 Table employs 110 Volt Electro-Static Hold-Down Technology suitable for securing light-weight material which assures precise cuts without slipping. This feature holds media in place utilizing an electrostatic charge that is generatedby electrodes arranged inside the panel.
![](https://www.far-from-normal.com/wp-content/uploads/2024/06/Screenshot-2024-06-21-140555.jpg)
Intuitive Operation with 3.7″ LCD
Onboard control and settings are simplified using the equipped 3.7” LCD (240×128 dots) and tactile control panel.
![](https://www.far-from-normal.com/wp-content/uploads/2024/06/Screenshot-2024-06-21-133749.jpg)
![](https://www.far-from-normal.com/wp-content/uploads/2024/06/Screenshot-2024-06-21-140617.jpg)
Provided Tools For Multiple Applications
The FCX4000 series has 2 tool holders in the carriage.
Using 2 different tools in the same job increases work efficiency.
Standard Accessories
ITEM | Qty | Description |
---|---|---|
Cutting Blade | 1 ea | CB15U-1 |
Blade Holder | 1 ea | PHP33-CB15N-HS |
Blade Loupe | 1 ea | PM-CT-001 (for checking the extruded length of blade) |
Fiber-tip Pen | 1 ea | KF700-BK (Black) Water-based |
Pen Holder | 1 ea | PHP31-FIBER |
Protect Sheet | 1 ea | PM-CR-002 for FCX4000-50ES / PM-CR-003 for FCX4000-60ES |
USB Cable | 1 ea | Length 114″ (2.9 m) |
DVD-ROM | 1 set | ・User’s Manual (PDF) ・Windows Driver (OPS662) ・Cutting Master 4 (plug-in for Illustrator / CorelDRAW – Windows / Illustrator – Mac) ・Graphtec Pro Studio (design software for Windows) ・Graphtec STUDIO (design software for Mac) |
Documents | 1 set | Quick Guide / Usage Precautions / Cutter Blade Manual |
Power Cord | 1 ea |
Optional Accessories
ITEM | Model Name | Spec | Description |
---|---|---|---|
Cutting Blades | CB09UB-5 | 0.9mm dia. 45º, Supersteel | Self-adhesive marking film (vinyl, fluorescent, refractive) thin sheet up to 0.25 mm thick |
CB15U-5 | 1.5mm dia. 45º, Supersteel | Rigid or thick film or sheet, heavy paper (pattern paper, oil board) 0.25 mm to 0.5 mm thick. | |
CB15U-K30-5 | 1.5mm dia. 30º, Supersteel | Rigid or thick sheet, 0.25 mm to 0.5 mm thick detailed characters on marking film to 0.25 mm | |
CB15U-K20-2SP | 1.5mm dia. 20º, Supersteel | Sandblast resist rubber, up to 1.0 mm thick. | |
CB15UA-5 | 1.5mm dia. 45º, Supersteel | High-intensity reflective film or harder film, up to 0.5 mm thick. | |
CB15UA-K30-5 | 1.5mm dia. 30º, Supersteel | High-intensity reflective film or harder film, up to 1.0 mm thick. | |
Blade Holders | PHP33-CB09N-HS | For CB09U series blade | |
PHP33-CB15N-HS | For CB15U series blade | ||
PHP35-CB09-HS | For CB09U series blade | ||
PHP35-CB15-HS | For CB15U series blade | ||
Blade Loupe | PM-CT-001 | Checking blade length, for PHP33 and PHP35 series | |
Creasing / Scoring Tools | CP-001 | Stick type, for heavy paper | |
PM-CT-002 | Ball on tip of stick, for curve on heavy paper | ||
Fiber-tip Pen / Holder | KF700-BK | Water-based Fiber-tip Pen, Black | |
KF700-RD | Water-based Fiber-tip Pen, Red | ||
PHP31-FIBER | Pen holder for KF700 series pen | ||
Cling Mat Adhesive Sheet | CM-0004 | Cling mat for film based materials, size 435 x 610 mm | |
CM-0005 | Cling mat for paper based materials, size 435 x 610 mm | ||
PM-CM-001 | Cling mat for film based type material, size 660 mm x 488 mm | ||
PM-CM-002 | Cling mat for paper based type material, size 660 mm x 488 mm | ||
Protect Sheet | PM-CR-002 | For protecting the writing panel of FCX4000-50ES, Transparent vinyl, thickness 0.3 mm | |
PM-CR-003 | For protecting the writing panel of FCX4000-60ES, Transparent vinyl, thickness 0.3 mm |
![](https://www.far-from-normal.com/wp-content/uploads/2024/06/Screenshot-2024-06-21-141251-1024x347.jpg)
MODEL | FCX4000-50ES | FCX4000-60ES (stand optional) | |
---|---|---|---|
Configuration | Digital servo system, Flatbed | ||
Media hold-down method | Electrostatic panel | ||
Effective cutting area | W 25.98″ x H 19.21″ | W 38.4″ x H 25.9″ | |
Mountable media (Y-axis direction) | 21.10″ | 27.97″ | |
Maximum cutting speed | 29.5″/s (1 to 75 cm/s in 23 steps) | ||
Cutting pressure | Tool 1: Max. 5.88 N (600 gf) Tool 2: Max. 5.88 N (600 gf) | ||
Cutting force settings | Tool 1: in 48 steps, Tool 2: in 48 steps | ||
Minimum character size | Approx. 10 mm square (varies with character font and media) | ||
Mechanical resolution | 0.005 mm (5µm) | ||
Programmable resolution | GP-GL mode: 0.1/0.05/0.025/0.01 mm, HP-GL™ (*1) : 0.025 mm | ||
Distance accuracy | Max.0.2% of the distance moved or 0.1mm, whichever is larger (excluding contraction of media, in plotting/cutting mode) (*2) | ||
Perpendicularity | Max 0.3 mm / 16.93″ (excluding contraction of media, in plotting/cutting mode) | Max 0.4 mm / 24.01″ (excluding contraction of media, in plotting/cutting mode) | |
Repeatability | Max 0.1mm (excluding contraction of media, in plotting/cutting mode)(*2) | ||
Standard interfaces | USB2.0 (Full Speed) / RS-232C / Ethernet (10BASE-T/100BASE-TX) | ||
Buffer memory | 2MB | ||
Command sets | GP-GL / HP-GL™ / AUTO (Automatic switching in GP-GL and HP-GL™) | ||
Number of tools | 2 tools | ||
Cutter blade, pen, and tool types | Cutter blade: supersteel Pen: water-based fiber-tip pen Creasing/scoring tool | ||
Operating panel | 3.7-inch graphical LCD (same LCD as the FCX2000) | ||
New features | Dual configuration, Creasing in the curve, Perforation cutting (performed by the force control), Data management using the bar-code, Offline cutting operation using the USB memory, Display the degree of wear for the cutting blade, Confirming the cutting object size, Draft mode (higher throughput in arc) | ||
Power supply | 100 to 240 V AC, 50/60 Hz (Auto switching) | ||
Power consumption | Max. 120 VA | ||
Operating environment | Temperature: 10 to 35 degree C , Humidity: 35 to 75% RH (non-condensing) | ||
Guaranteed accuracy environment | Temperature: 16 to 32 degree C, Humidity: 35% to 70% RH (non-condensing) | ||
External dimensions (*3) (W x D x H) | W 42.87″ x D 35.31″ x H 8.03″ | W 55.31″ x D 42.08″ x H 8.03″ (including stand : W 55.31″ x D 43.18″ x H 35.27″) | |
Weight | approx. 63.93 lbs (29kg) | approx. 83.77 lbs (38 kg) (including stand 121.25 lbs (55 kg) | |
Compatible OS 6(*4)(*5) | Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 10.13 (Ventura) | ||
Included Software (*6) | Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac | ||
Compatible Standards | Safety | UL/cUL, CE mark | |
EMC | VCCI Class A, FCC Class A, CE mark (EN55032, others) |
*1. HP-GL™ is registered trademark of the Hewlett-Packard Corporation of the United States.
*2. When operated with Graphtec specified media and conditions.
*3. Tolerance: +/- 5 mm
*4. Graphtec does not support software/driver used with operating systems that have become obsolete and are no longer supported by the OS developer.
*5. For more information about Windows and Macintosh compatibility, please check the website or contact with your local representative of Graphtec
*6. Software available for download on the Graphtec website.
Media Type
Media Type | Thickness | Supported Blades | FCX4000-50/60ES | |
---|---|---|---|---|
Self-adhesive marking film (vinyl, fluorescent, reflective) | up to 0.25 mm | CB09UB | 〇 | |
Heavy paper/board (pattern paper, oil board) | up to 0.5 mm | CB15U、 CB15U-K30 | 〇 | |
up to 1.0 mm | CB30UC | – | ||
Compressed foam sheet | up to 0.8 mm | CB15U-K30 | 〇 | |
Sandblast resist rubber | up to 1.0 mm | CB15U-K20 | 〇 | |
Cardboard | E flute | up to 1.5 mm | CB30UC | – |
F / G flute | up to 1.2 mm | CB30UC | – | |
CB15U-K30 | 〇 | |||
Rubber sheet | up to 1~2 mm | PM-CB-001 | – | |
Clear sheet for plastic boxes | up to 0.5 mm | CB15U | 〇 | |
up to 1.0 mm | CB15U-K30 | 〇 | ||
High-intensity reflective film | up to 0.5 mm | CB15UA | 〇 | |
up to 1.0 mm | CB15UA-K30 | 〇 |
